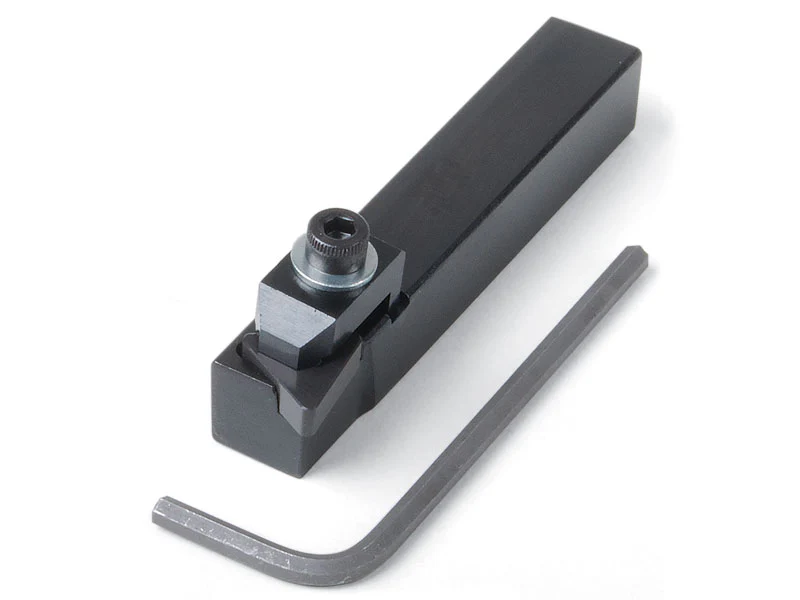

Ceramic Insert Tool Holder 2265

Designed for cutting hard materials like tool steel, this ceramic insert tool holder features a triangular insert mounted at a negative rake angle. The downward tilt of the insert provides proper side clearance, allowing you to use all six cutting edges��three per side��before needing a replacement. The 3/8�� shank fits Sherline��s P/N 7600 tool post (not included). A clamp, hold-down screw, and 3/32�� hex key are included for secure installation.?

Why Use Ceramic Inserts?
Ceramic cutting tools are a powerful addition to the modern machinist��s toolbox. Though more brittle than high-speed steel (HSS) or carbide, ceramic inserts excel at cutting hardened steels and other tough materials, especially at higher spindle speeds. This makes them ideal for jobs that would otherwise be extremely difficult or impossible��such as turning down the shank of an end mill.

This insert��s large nose radius helps achieve an excellent surface finish, particularly when profiling.

Each insert offers six usable cutting edges:

Rotate 120�� to access a new edge (3 per side), then

Flip the insert for 3 more cutting points on the opposite face

In comparison, traditional carbide inserts offer only 2�C4 cutting edges, making ceramic inserts cost-effective over time, despite the higher upfront cost.
