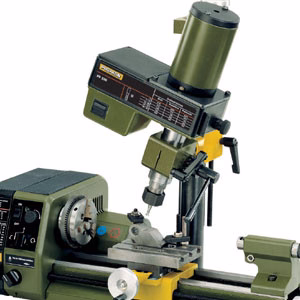

Mill/drill head PF 230

Converts the lathe PD 230/E into a complete machining centre.

Set includes column (35 x 400mm), mounting bracket and bolts.

The mounting position on the PD 230/E is already milled.

The lathe��s top slide is replaced with the table (supplied) of 110 x 70mm, with 3 T-slots 12 x 6 x 6mm. The lathe now functions as a compound table, with X-Y travel being longitudinally and cross-wise respectively.
